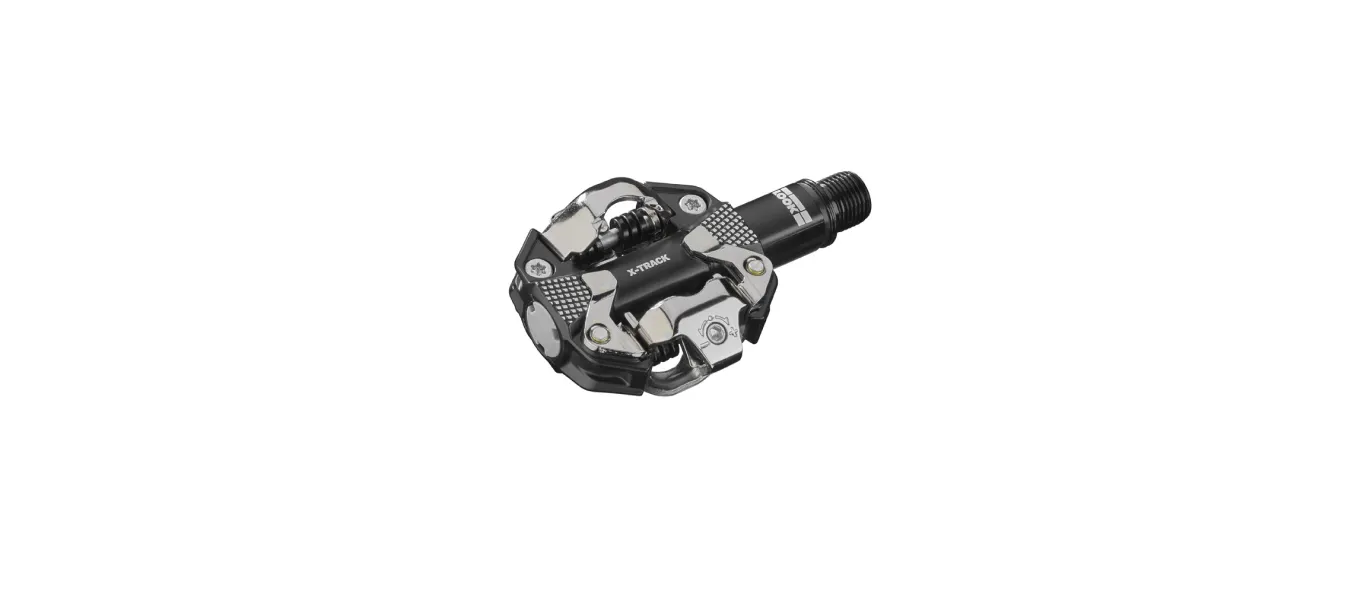

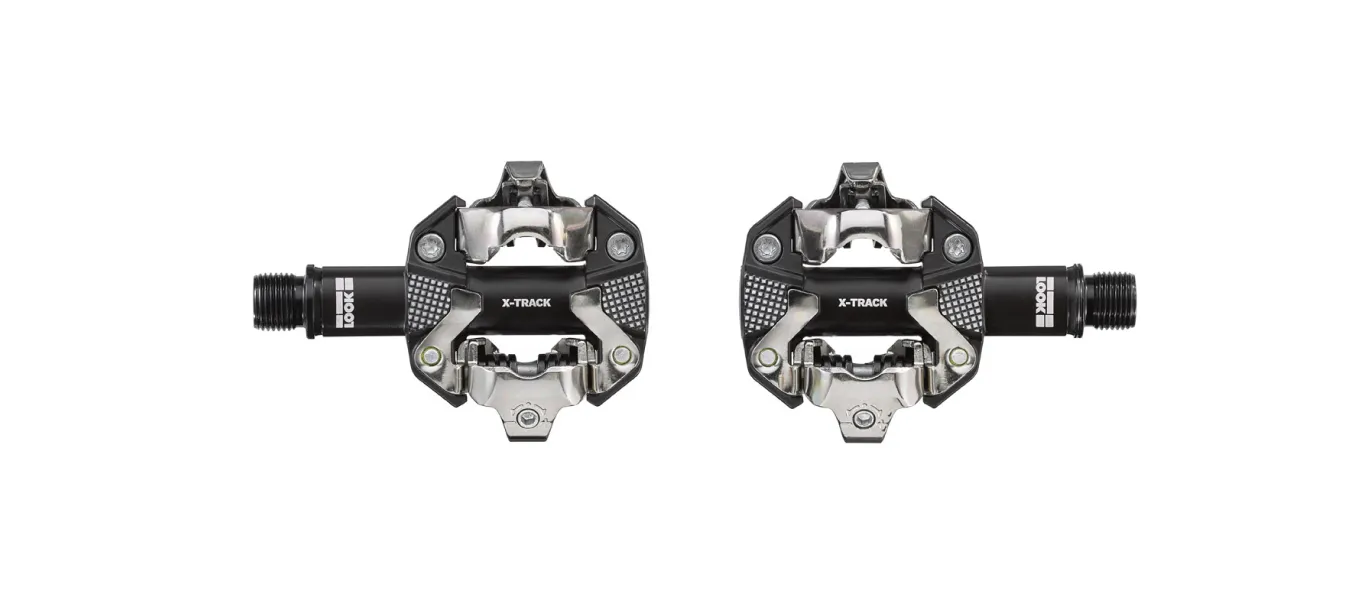

The X-TRACK is LOOK's entry level off-road pedal, which does not mean technology is left aside. The aluminum body and Chromoly , double-sealed axle are robust and ensure total fluidity thru the pedalstroke. Tension can be quickly and easily adjusted from 6 thru 14.
WHY YOU'LL LOVE IT?
STEP INTO LOOK'S MTB WORLD
- Combine an SPD-standard mechanism with a wide contact area for efficiency and security
- Choose between racy red or sober black
- Effortlessly adjust pedal tension to your requirements
TECHNICAL SPECIFICATIONS
SPINDLE
| Spindle material | Chromoly |
|---|
BODY & PLATFORM
| Technology | X-TRACK |
|---|---|
| Body material | Aluminim |
| Platform area | 350 mm² |
| Platform width | 57 mm |
| Total stack height (pedal cleat) | 16,8 mm (10,7 6,1 mm) |
| Q Factor | 53 mm |
RETENSION & CLEATS
| Retention | 6 to 14 |
|---|---|
| Cleats | Standard cleat included (easy cleat available separately) |
| Cleats standard | SPD compatible |
| Float angle | 6° |
| Release angle | 13° |
WEIGHT & SIZES
| Pedal | 200 g |
|---|---|
| Weight pair cleats | 450 g |
